电气性能 ELECTRICAL |
|
|
型号 Model |

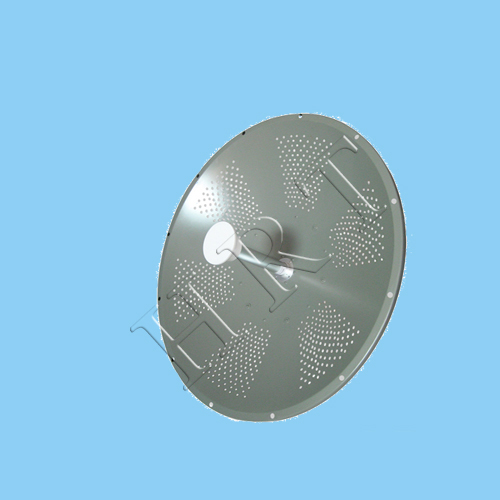

TDJ-5800D9-32x2 |
|
频率范围 Frequency Range-MHz |
5150-5850 |
|
带宽 Bandwidth-MHz |
700 |
|
增益 Gain-dbi |
32x2 |
|
波瓣宽度 Beamwidth |
H：3.5° E：3.5° |
|
前后比 F/B Ratio-dB |
≥38 |
|
电压驻波比 VSWR |
≤2.0 |
|
极化方式 Polarization |
垂直和水平Vertical & Horizontal |
|
最大功主率 Max power-W |
100 |
|
输入阻抗 Nominal Impedance-Ω |
50 |
|
机械参数 MECHANICAL |
|
|
接头型号 Connector |
2xN座 2xN female |
|
天线尺寸 Antenna Dimension-M |
Ф0.9 |
|
重量 Weight-KG |
10.5 |
|
抗风强度 Rated Wind Velocity-m/s |
60 |
|
支撑杆直径 Diameter of the Pole |
Φ50～75 |
