类别
Category
|

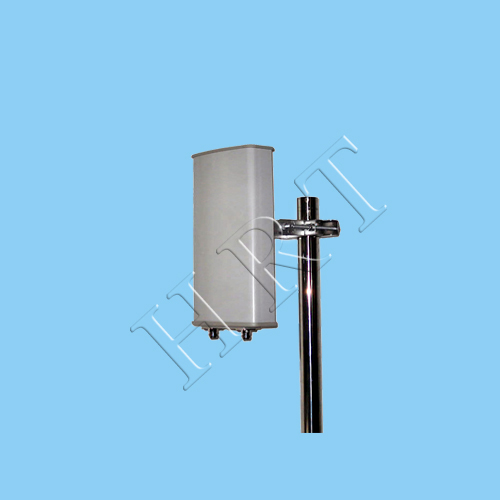

板状天线Panel Antennas
|
|
型号
Model
|
TDJ-1725BP60D12
|
|
频率范围
Frequency Range-MHZ
|
1710-2170/2300-2500
|
|
带宽
Bandwidth-MHZ
|
460/200
|
|
增益
Gain-dBi
|
2×11
|
|
水平面波瓣宽度
Horizontal Beamwidth-°
|
60
|
|
垂直面波瓣宽度
Vertical Beamwidth-°
|
28
|
|
前后比
F/ B Ratio-dB
|
≥25
|
|
隔离度-dB
|
≧30
|
|
三阶互调2×43dBm
|
≤95-100(≤-140dBc)
|
|
电压驻波比
VSWR
|
≤1.5
|
|
标称阻抗
Nominal impedance-Ω
|
50
|
|
极化方式
Polarization
|
±45°
|
|
最大功率
Maximum power-W
|
100
|
|
尺寸
Dimensions-m
|
300 X 170 X 60
|
|
重量
Weight-kg
|
2
|
|
抗风强度
Rated Wind Velocity-m/s
|
60
|
|
接头型号
Connector
|
N座或用户指定 N Female or Customizatio
|
