类别
Category
|

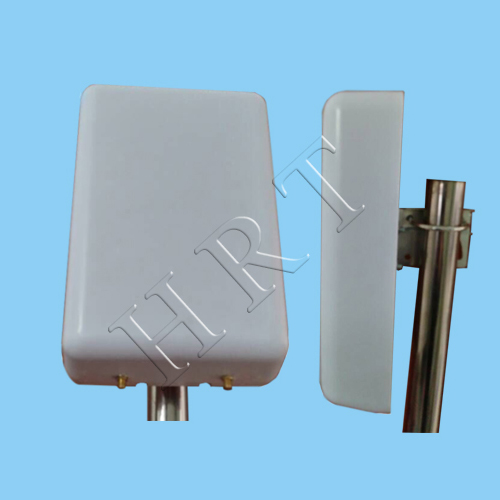

Patch Panel Antennas
|
|
|
型号
Model
|
TDJ-0727BGAN
|
|
|
频率
Frequency range-MHz
|
806～960/1710～2700
|
1710～2700
|
|
颜色
Radome material
|
White
|
|
|
增益
Gain-dBi
|
6/8
|
8
|
|
垂直波瓣宽度
Vertical Beamwidth-°
|
85/65
|
65
|
|
水平波瓣宽度
Horizontal Beamwidth-°
|
90±10 / 85±10
|
85±10
|
|
前后比
Front to Back Ratio-dB
|
≧8
|
≧8
|
|
驻波
VSWR
|
≦1.5
|
|
|
标称阻抗
Nominal impedance-Ω
|
50
|
|
|
极化方式
Polarization
|
Vertical/ -45°
|
+45°
|
|
最大功率
Maximum power-W
|
100
|
|
|
尺寸
Dimensions-mm
|
290*170*50
|
|
|
重量
Weight-kg
|
1
|
|
|
抗风强度
Rated Wind Velocity-m/s
|
60
|
|
|
接头
Connector
|
2×SMA female
|
|
