类别 Category |

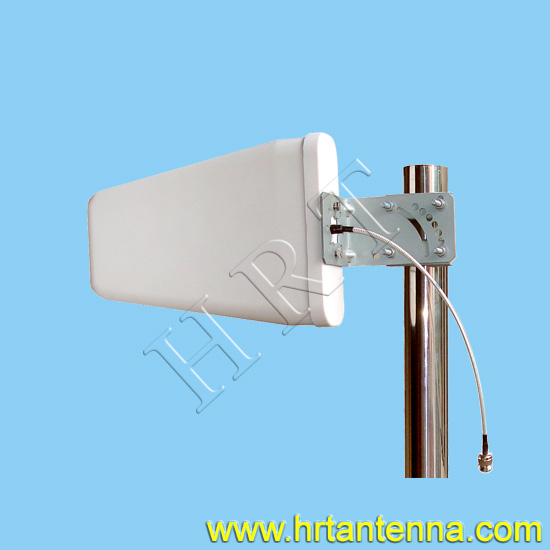

对数周期天线 LPDA Antennas |
|
型号 Model |
TDJ-0825DSAN10 |
|
频率范围 Frequency Range-MHZ |
800~960/1700~2500 |
|
增益 Gain-dBi |
10 |
|
水平面波瓣宽度 Horizontal Beamwidth-° |
60/55 |
|
垂直面波瓣宽度 Vertical Beamwidth-° |
90/70 |
|
前后比 F/B Ratio-dB |
≥18 |
|
电压驻波比 VSWR |
≦1.5 |
|
标称阻抗 Nominal Impedance-Ω |
50 |
|
极化方式 Polarization |
垂直Vertical |
|
最大功率 Maximum Power-W |
50 |
|
长度 Length-cm |
32x21x6.5 |
|
重量 Weight-kg |
0.8 |
|
接头型号 Connector |
N座或用户指定N fenmale or Customization |
|
备注 Remarks |
支撑杆安装 Poles mounting |
