类别 Category |

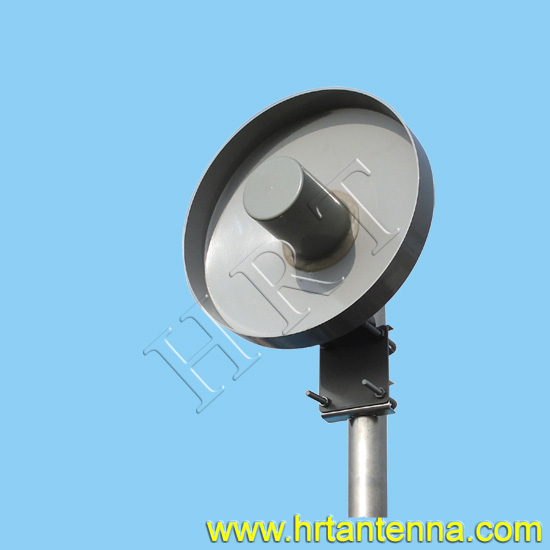

背射天线Blackfire Antennas |
|
型号 Model |
TDJ-2400BAN-16 |
|
频率范围 Frequency range-MHz |
2400-2500 |
|
带宽 Bandwidth-MHz |
100 |
|
增益 Gain-dBi |
16 |
|
水平面波瓣宽度 Horizontal Beamwidth-° |
26 |
|
垂直面波瓣宽度 Vertical Beamwidth-° |
24 |
|
前后比 F/ B Rati-dB |
≧30 |
|
电压驻波比 VSWR |
≦1.5 |
|
标称阻抗 Nominal impedance-Ω |
50 |
|
极化方式 Polarization |
垂直Vertical |
|
最大功率 Maximum power-W |
100 |
|
尺寸 Dimensions-m |
Ф26 |
|
重量 Weight-kg |
1.5 |
|
抗风强度 Rated Wind Velocity-m/s |
60 |
|
接头型号 Connector |
N座 N femaleBlock N, N-female |
|
支撑直径 Mounting Mast Diameter-mm |
Ф35-50 |
