类别Category

车台天线  Mobile Antennas

型号Model

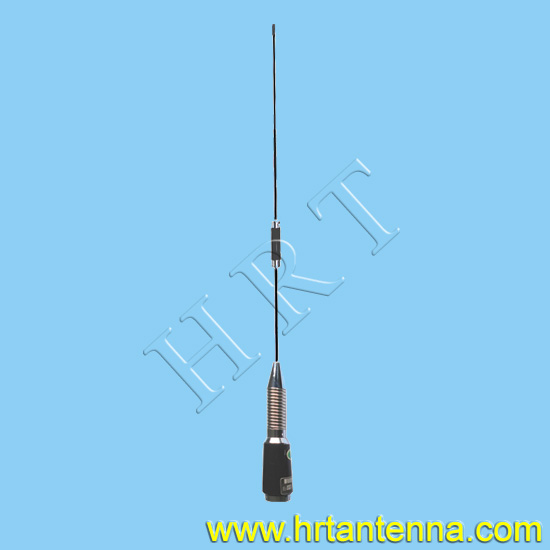

TQC-700DII

频率范围Frequency range-MHz

690-800

带宽Bandwidth-MHz

30

增益Gain-dBi

5.5

电压驻波比VSWR

≤1.5

标称阻抗Nominal impedance-Ω

50

极化方式Polarization

垂直 Vertical

最大功率Maximum power-W

100

长度Length-cm

重量Weight-kg

0.7

接头型号Connector

SL16头UHF male

备注Remarks

底部弹簧防碰，配M110大磁吸座

Bottom spring which can prevent collision.Matches with M110 large magnetic mount
