类别Category |

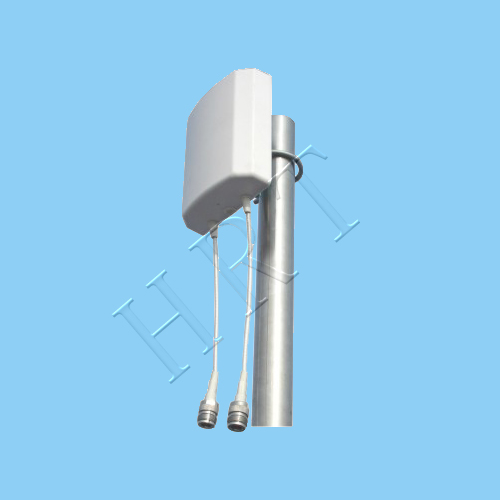

板状天线 PanelAntennas
|
|
型号Model |
TDJ-2400BP30VH12 TDJ-24008P40VHI0
|
|
频率范围Frequency Range-MHZ |
2 4 0 0 - 2 5 0 0 |
|
带宽Bandwidth-MHZ |
1 0 0
|
|
增益Gain-dBi |
12 10
|
|
水平面波船宽度
Horizontal Beamw idth-0
|
30 38 |
|
垂直面波瓣宽度
Vertical Beamwidth -0
|
60 60 |
|
电压驻波比VSWR |
≤1.5 |
|
标称阻抗Nominal Impedance-Ω |
50 |
|
极化方式Polarization |
垂直和水平 vertical and horizontal
|
|
最大功率Maximum Power-W |
50
|
|
尺寸Dimensions-cm |
220 X 190X 50 220X190X50
|
|
重量Weight-g |
1.0 1.0
|
|
抗风强度
Rated Wind Velocity-mis
|
60 |
|
接头型号Connector |
2 X N座
2XN female
|
|
支撑杆直径
Mounting
Mast Diameter-mm
|
35~50 |
佛山市华融通天线有限公司
Foshan Huarongtong Antenna Co., Ltd.
