型号Model
|

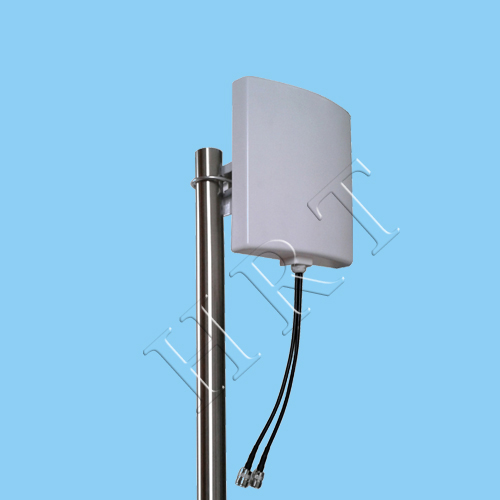

TDJ-2000BKC9x2
|
|
频率范围Frequency Range- MHz
|
1800-2700
|
|
带宽Bandwidth -MHz
|
900
|
|
增益Gain -dBi
|
2×9
|
|
垂直角度Vertical Beamwidth °
|
55°
|
|
水平角度Horizontal Beamwidth °
|
70°
|
|
驻波VSWR
|
≤1.8
|
|
前后比F/B Ratio -dB
|
≥25
|
|
极化方式Polarization
|
Vertical and Horizontal
|
|
最大功率Max Power- W
|
100
|
|
标称阻抗Nominal Impedance-Ω
|
50
|
|
接头Connector
|
2×N female
|
|
尺寸Antenna dimensions -mm
|
220×190×50
|
|
重量Weight- kg
|
1.2
|
|
工作温度The Work Temperature-℃
|
-30°~60°
|
佛山市华融通天线有限公司
Foshan Huarongtong Antenna Co., Ltd.
