类别Category

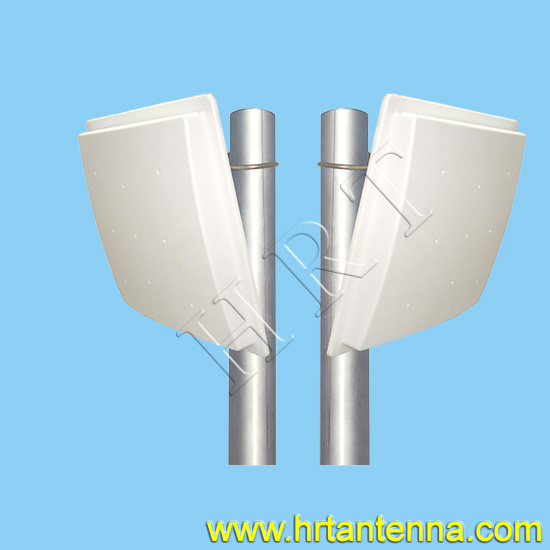

 Panel Antennas

型号Model

TDJ-3500BP45D14x2

频率Frequency Range-MHz

3400-3600

带宽Bandwidth-MHz

200

增益Gain-dBi

14x2

水平角度Horizontal Beamwidth-°

45

垂直角度Vertical Beamwidth-°

45

前后比F/B Ratio-dB

>25

驻波VSWR

≤2.0

极化方式Polarization

Vertical+ Horizontal

阻抗Nominal Impedance-Ω

50

最大功率Maximum Power-W

100

尺寸Dimensions-mm

260×260×35

重量Weight-kg

1.5

抗风强度Rated Wind Velocity-m/s

60

接头Connector

2xN-female

支撑杆直径Mounting Mast Diameter-mm

Φ35~50
